ASTM A234 WP22-S Carbon Steel 180 Degree U Bend NDE Test

Brand Name : YuHong

Model Number : ASTM A234 WP22-S

Certification : ISO,PED, TUV, ABS, DNV, GL , LR , KR, BV, CCS, COST

Place of Origin : China

MOQ : 1 PC

Price : Negotiable

Payment Terms : T/T,L/C AT SIGHT

Supply Ability : According to Clients' requirements

Delivery Time : Generally within 30 Days

Packaging Details : Ply-wooden Cases/Pallets

Product Name : 180 Degree Elbow SR/180 Degree Return Bend

Specification : ASTM A234

Material : WPB-S

Radius : LR or SR (Depend on Customer's Requirements)

Surface : Black Painted or Oiled

Test : Size Inspection, NDE Test...

Size Standard : ASME B16.9

Application : Heat Exchangers, Piping Systems, Oil and Gas Industry, Water Tretment

Contact Now

180 Degree ASTM A234 WP22-S U Bend For High Temperature Services In Oil And Gas
Product Specifications
Attribute Value
Product Name 180 Degree Elbow SR/180 Degree Return Bend
Specification ASTM A234
Material WPB-S
Radius LR or SR (Depend on Customer's Requirements)
Surface Black Painted or Oiled
Test Size Inspection, NDE Test
Size Standard ASME B16.9
Application Heat Exchangers, Piping Systems, Oil and Gas Industry, Water Treatment
Product Overview

ASTM A234 WP22-S 180 Degree U Bend fittings are alloy steel components designed for high-temperature services in oil and gas applications. These U-shaped fittings change piping direction by 180 degrees while maintaining system integrity under extreme conditions.

Key Features and Benefits
  • Durability: Constructed from high-strength alloy steel for demanding environments
  • Corrosion Resistance: WP22-S grade provides excellent protection against rust and deterioration
  • Temperature Performance: Designed to withstand elevated operating temperatures
  • Pressure Capacity: Engineered to maintain system integrity under high pressures
  • Longevity: Extended service life reduces maintenance and replacement costs
  • Versatility: Suitable for diverse industrial applications including power generation and chemical processing
Material Specifications

Chemical Composition:

  • Carbon (C): 0.05 - 0.15%
  • Manganese (Mn): 0.30 - 0.60%
  • Phosphorus (P): ≤ 0.025%
  • Sulfur (S): ≤ 0.025%
  • Silicon (Si): 0.50 - 1.00%
  • Chromium (Cr): 2.00 - 2.50%
  • Molybdenum (Mo): 0.87 - 1.13%

Mechanical Properties:

  • Tensile strength: ≥ 415 MPa
  • Yield strength: ≥ 205 MPa
  • Elongation: ≥ 30%
Industrial Applications

These high-performance fittings are essential components in:

  • Power plant steam systems and turbine piping
  • Petrochemical refineries and processing facilities
  • Oil and gas pipelines and processing equipment
  • Chemical processing plants handling corrosive materials
  • Pharmaceutical manufacturing processes
  • Food processing systems requiring corrosion-resistant materials
ASTM A234 WP22-S Carbon Steel 180 Degree U Bend NDE Test

Product Tags:

NDE Test return elbow



Piping return elbow



NDE Test 3 4 return bend


Wholesale ASTM A234 WP22-S Carbon Steel 180 Degree U Bend NDE Test from china suppliers

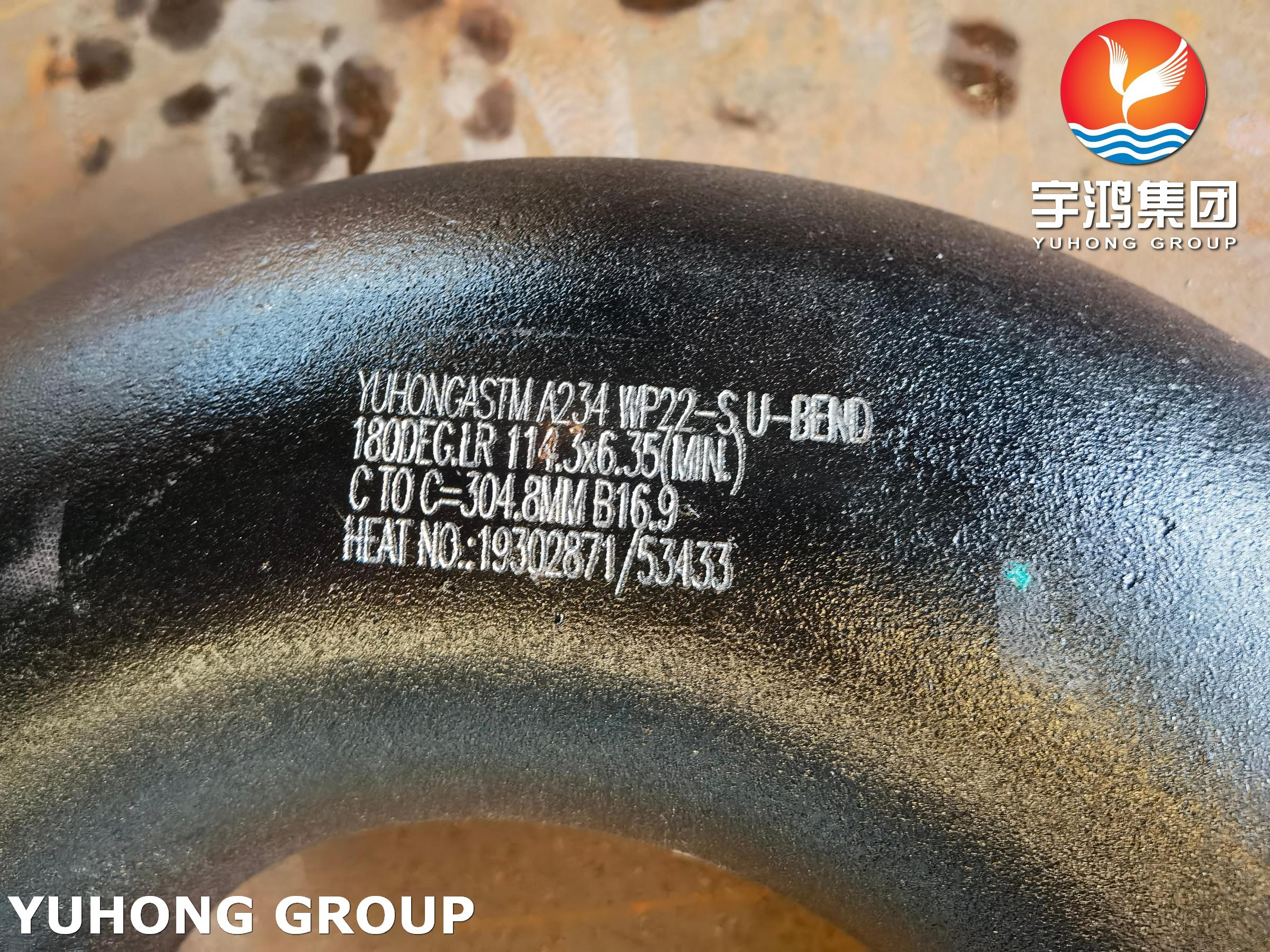

ASTM A234 WP22-S Carbon Steel 180 Degree U Bend NDE Test Images
